Metal Roofing & Siding Reference Guide



Click On The Pictures Below To Go Directly
To The Description Of The Panel

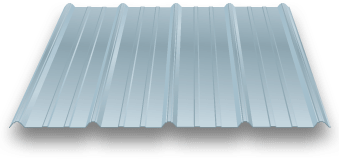

IMPERIAL RIB®

IMPERIAL RIB®
Available from
All locations.

PRODUCT FEATURES

Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - ¾"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester


29 Gauge $3.95 Linear FT.
26 Gauge $5.06 Linear FT.

Detailed Information

Back to the Top
imperial rib metal panel imperial rib panel profile

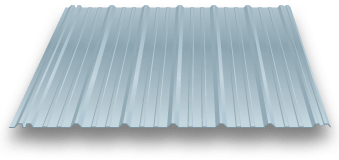

AMERI-DRAIN®

AMERI-DRAIN®
Available from
Rome, New York.

PRODUCT FEATURES
Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - Major Ribs ½"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester

29 Gauge $5.29 Linear FT.
26 Gauge $6.98 Linear FT.

Detailed Information

Back to the Top

ameri-drain metal panelameri-drain panel profile

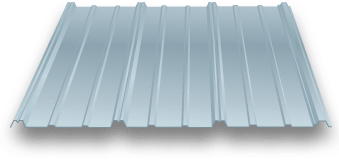

REGAL RIB®

REGAL RIB®
Available from
Nicholasville, Kentucky


PRODUCT FEATURES

Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - 5/8"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester

29 Gauge $5.29 Linear FT.
26 Gauge $6.98 Linear FT.

Detailed Information

Back to the Top

regal rib metal panelregal rib panel profile

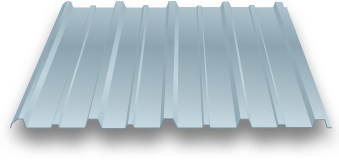

RUGGED RIB®

RUGGED RIB®
Available from
Omaha, Nebraska and Lubbock, Texas.

PRODUCT FEATURES
Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - 9/16"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester

29 Gauge $5.29 Linear FT.
26 Gauge $6.98 Linear FT.

Detailed Information

Back to the Top

rugged rib metal panel
rugged rib panel profile

MONARCH RIB®

MONARCH RIB®
Available from
Omaha, Nebraska.
PRODUCT FEATURES
Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - 5/8"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester

29 Gauge $5.29 Linear FT.
26 Gauge $6.98 Linear FT.


Detailed Information

Back to the Top
monarch rib metal panelmonarch rib panel profile

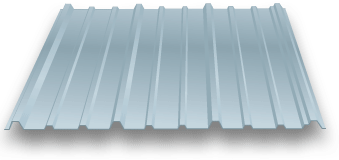

7/8 WIDE RIB®

7/8 WIDE RIB®
Available from
Salt Lake City, Utah.

PRODUCT FEATURES
Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - 7/8"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester

29 Gauge $5.29 Linear FT.
26 Gauge $6.98 Linear FT.


Detailed Information

Back to the Top

7/8 wide rib metal panel7/8 wide rib panel profile

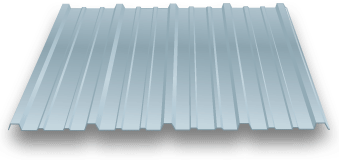

PERMA CLAD®

PERMA CLAD®
Available from
Salt Lake City, Utah
and Oklahoma City, Oklahoma.

PRODUCT FEATURES
Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - 5/8"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester

29 Gauge $5.29 Linear FT.
26 Gauge $6.98 Linear FT.

Detailed Information

Back to the Top

perma clad metal panelperma clad panel profile


Architectural & Specialty Panels

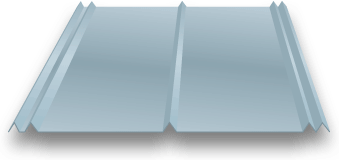

5V CRIMP

5V CRIMP
Available from
all locations.

PRODUCT FEATURES
Panel Type
Exposed Fastener Metal Panel
Panel Width Coverage - 24"
Rib Height - ½"
Gauges - 29 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Bare Galvalume

29 Gauge $3.88 Linear FT.

Detailed Information

Back to the Top

5v crimp metal panel5v crimp panel profile

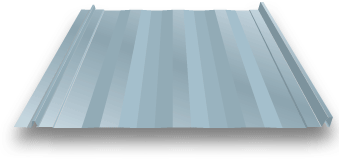

SL-16®

SL-16®
Available from
all locations.

PRODUCT FEATURES
SL-16®is a sleek contemporary panel system ideal for residential applications.
Panel Type - Concealed Fastener Metal Panel
Panel Width Coverage - 16"
Rib Height - 1"
Gauges - 29 and 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester


16" 29 Gauge $3.18 Linear FT.
16" 26 Gauge $3.71 Linear FT.

Detailed Information

Back to the Top

SL-16 metal panel SL-16  panel profile

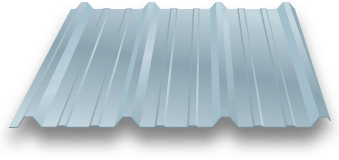

PBR

PBR
Available from
all locations.

PRODUCT FEATURES
Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - 1¼"
Gauges - 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester


26 Gauge Painted $5.99 Linear FT.
26 Gauge Bare $5.09 Linear FT.

Detailed Information

Back to the Top

pbr metal panelpbr  panel profile

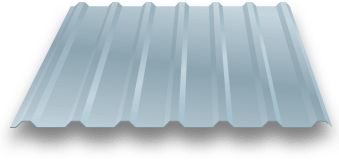

PBU

PBU
Available from
all locations.

PRODUCT FEATURES
Panel Type - Exposed Fastener Metal Panel
Panel Width Coverage - 36"
Rib Height - ¾"
Gauges - 26 gauge
Metal Panel Substrate - Galvalume
Paint Finish Type - Siliconized Polyester



26 Gauge Painted $5.99 Linear FT.
26 Gauge Bare $5.09 Linear FT.


Detailed Information

Back to the Top

pbu metal panel pbu  panel profile
For Ordering Steel and Questions About Your Quote Please Call
Phone: (269) 683-2723 | Fax: (269) 683-3287

If you have some general question about your project or did not see something you need
feel free to give us a call, we do our best, to help you, do your best.

Panels lengths can be custom cut from 4 feet to 40 feet in ½ inch increments,
for no additional charge. Panel lengths under 4 feet add $1.50 per panel cut charge.
Custom cutting panels saves time and money, greatly reducing job-site cutting and waste.
